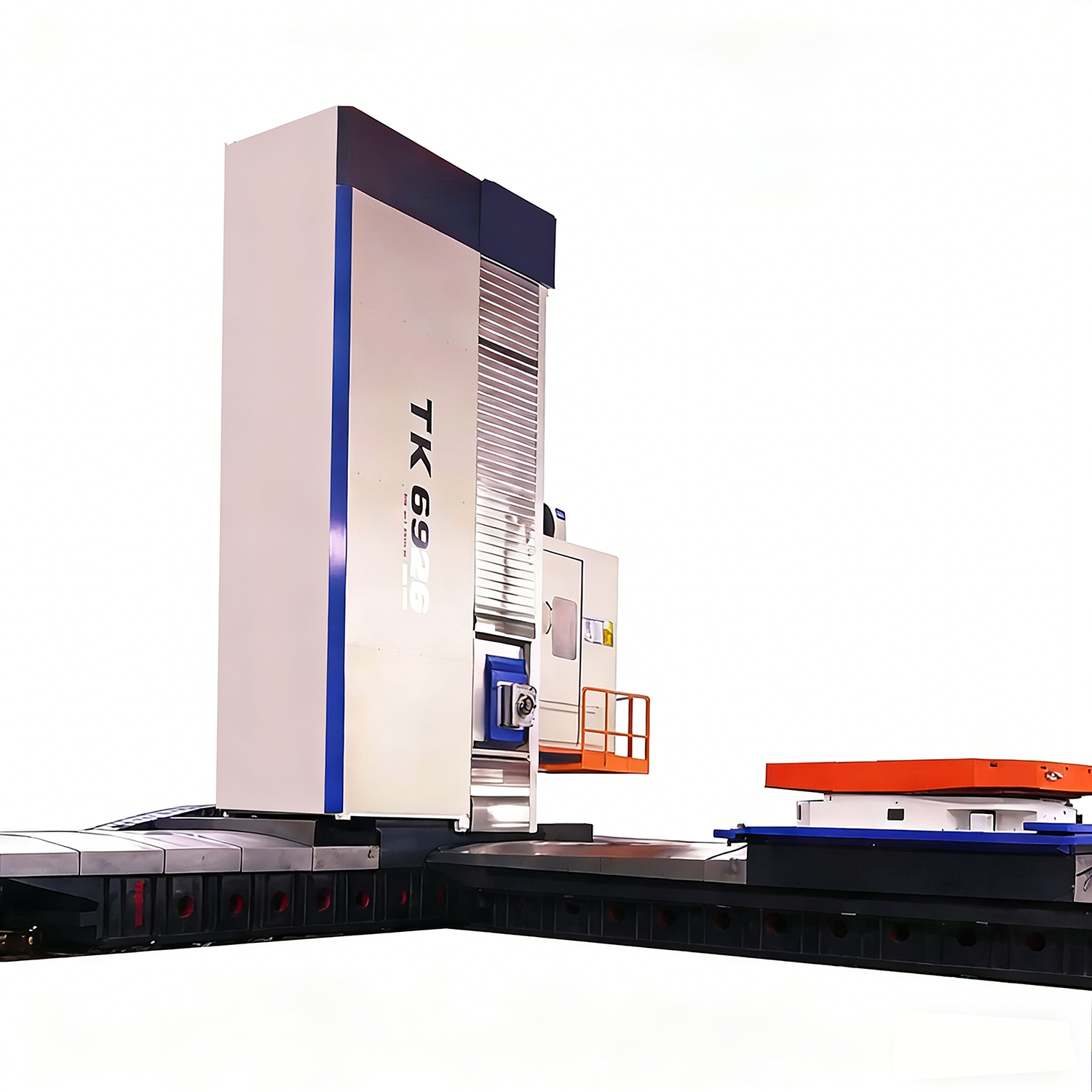

TK6926
Weish floor-type horizontal boring mill for powerful and precise, high-performance coordinate drilling, boring, and threading large and heavy workpieces.
-
Spindle diameter 130 mm 160mm, 200mm or 260mm; spindle travel 800 mm.
-
Ram stroke 600 mm.
-
Equipped with floor plates and/or rotary tables.
-
Fully compatible with a wide range of accessories and automatic milling heads.
Product Details
The Weish floor type boring mills are able to combine maximum damping, maximum rigidity and high torque to the spindle with optimal working precision. They are able to satisfy also the most difficult applications when machining medium- and large-sized components, for which horizontal machining is preferable.
Technical Specifications – TK6926
| Specification | Unit | TK6926 (CNC floor type boring machine) |
|---|---|---|
| Spindle diameter | mm | Φ260 |
| Spindle top diameter | mm | φ221.44 |
| Taper | - | ISO 50 (JT50 7:24) |
| Blindrivet model | - | D50 DIN69872 |
| Power of main motor | kW | 75 |
| Spindle speed | r/min | 2-600 |
| Max. torque of spindle | N·m | 3136 |
| Max. axial resistance of spindle | N | 31360 |
| Worktable size | mm | optional |
| Max. loading on table | kg | 15000 |
| Worktable transversal travel (X axis) | mm | optional |
| Headstock vertical travel (Z axis) | mm | 2000 |
| Worktable longitudinal travel (Y axis) | mm | 1400 |
| Spindle travel (W axis) | mm | 900 |
| Facing slide travel (U axis) | mm | 250 |
| Rotary speed of worktable (B axis) | ° | 360 |
| The width of T-slot and number | mm / slots | 28 / 9 |
| Min. distance from spindle top to table center | mm | 120 (spindle extend) |
| Distance from spindle center to the table | mm | 100-2100 |
| Max. feeding speed (X axis) | mm/min | stepless, 1-2500 |
| Max. feeding speed (Y axis) | mm/min | stepless, 1-2500 |
| Max. feeding speed (Z axis) | mm/min | stepless, 1-2500 |
| Max. feeding speed (V, W axis) | mm/min | stepless, 1-2500 |
| B axis speed | r/min | 0~1 |
| Tool changer (ATC) | - | Not equipped |
| Max. rapid feeding speed (X, Y, V, W axis) | mm/min | 2500 |
| Max. rapid feeding speed (Z axis) | mm/min | 3000 |
| Spindle cooling | bar | 20 |
| Protective door plate | - | CE Nor |
| Max. rapid feeding speed (B axis) | °/min | 550 |
Product Advantages
- Design Flexibility – Weish Series is a full line of table type and floor type Horizontal Boring Mills made to support a wide range of applications for machining large, heavy-duty workpieces. Built for extreme-duty roughing and high precision finishing, these horizontal boring mills offer modular designs and flexibility to meet the demands of various processes.
- Superior Rigidity and Stability – The main structural components of these machines are made with high-quality alloy castings made according to Meehanite process and a heavily ribbed design allowing for maximum rigidity, vibration dampening and thermal stability.
Company Strength
High-Precision Spindle
Robust spindle design ensures stable and accurate machining for heavy-duty applications.
Heavy-Duty Worktable
Large worktable with high load capacity, suitable for massive workpieces up to 15 tons.
Multi-Axis Control
Advanced CNC system with X, Y, Z, W, U, B axes for complex machining requirements.
High Torque & Damping
Maximum damping and rigidity combined with high torque for difficult applications.
Modular Design
Flexible modular construction allows customization for various machining processes.
Thermal Stability
Meehanite castings and ribbed design ensure thermal stability and minimal vibration.
User-Friendly Operation
Intuitive controls and easy maintenance for long-term trouble-free operation.
Freight Information
This machine will be loading into 4x40 GP containers for international shipping.
