TK6813/2
A vast assortment of standard or customised CNC attachment heads

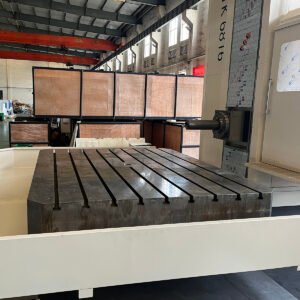

A wide assortment of milling or turning tables
A wide assortment of tool magazines and tool and CNC attachment head magazines
Product Details

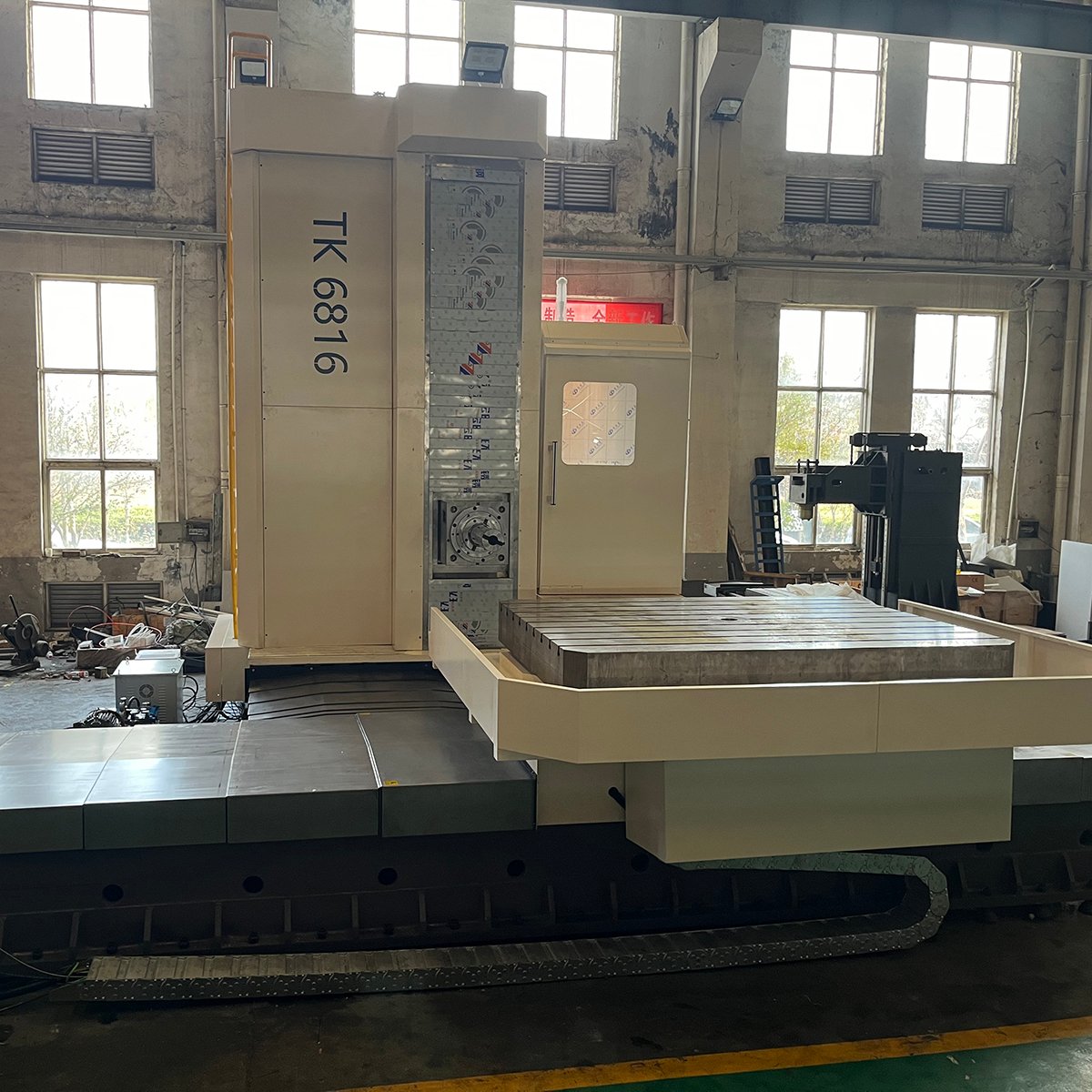

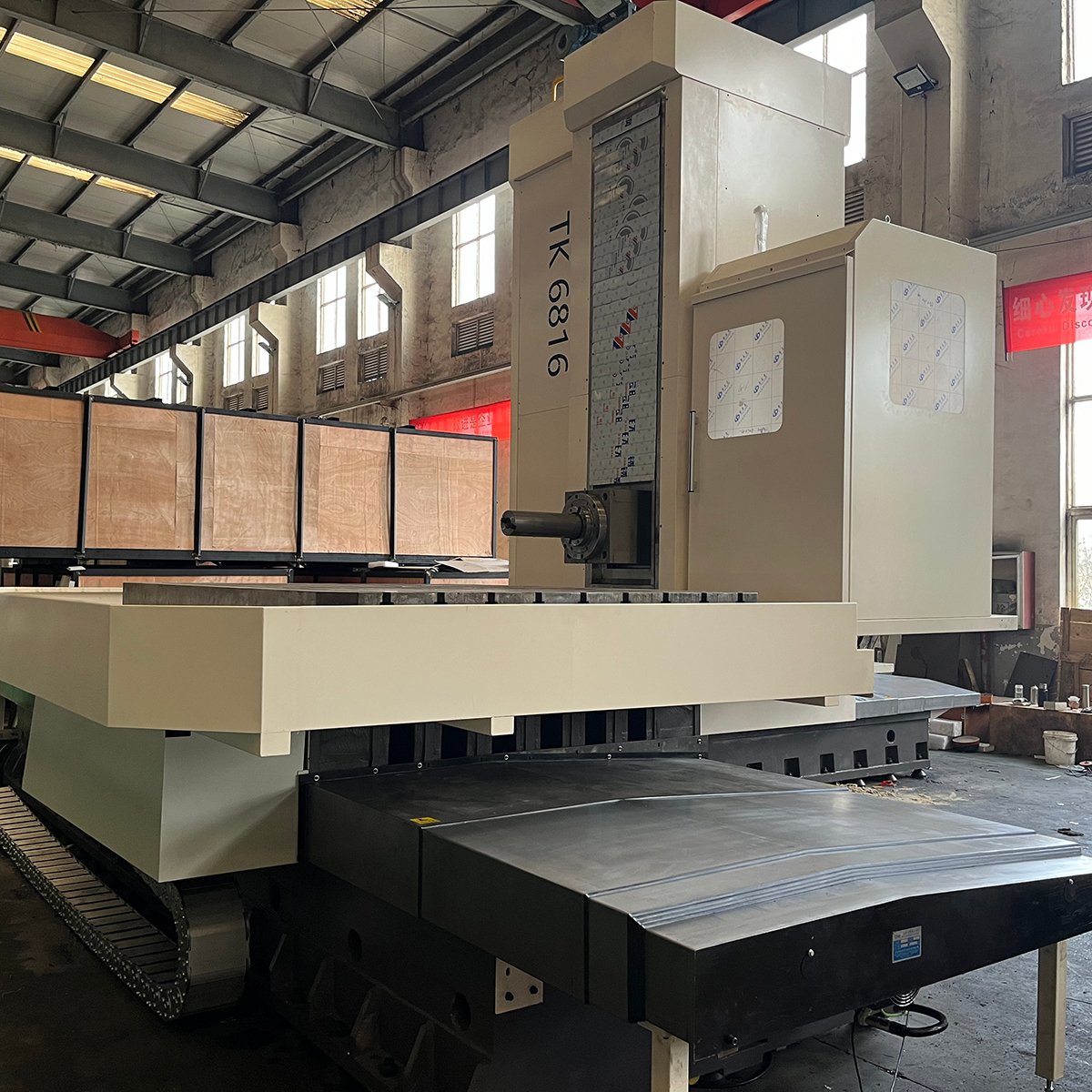

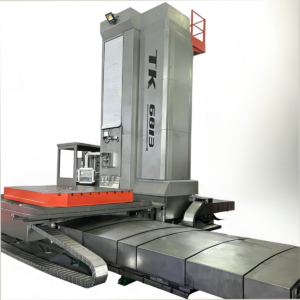

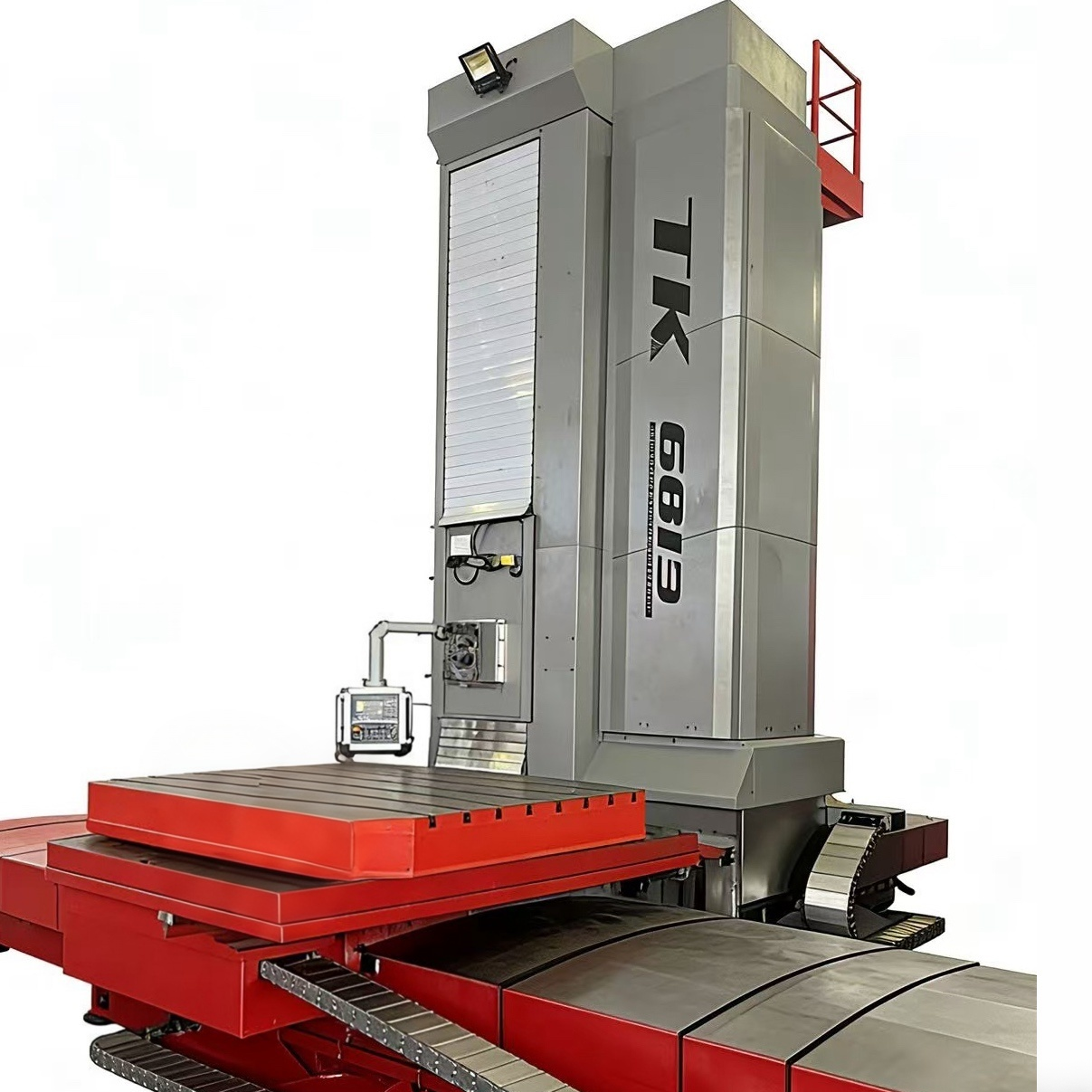

The reliable K-series machines enable efficient complete machining of prismatic workpieces up to a size of 6,000 × 4,000 × 2,000 mm. They are available with automatic tool changer, pallet changer, different table assemblies, milling head changer or integrated NC facing head and can therefore be used universally for any application.
Technical Specifications
| Parameter Category | TK6511 | TK6513 | TK6813 | TK6516 | TK6816 |
|---|---|---|---|---|---|

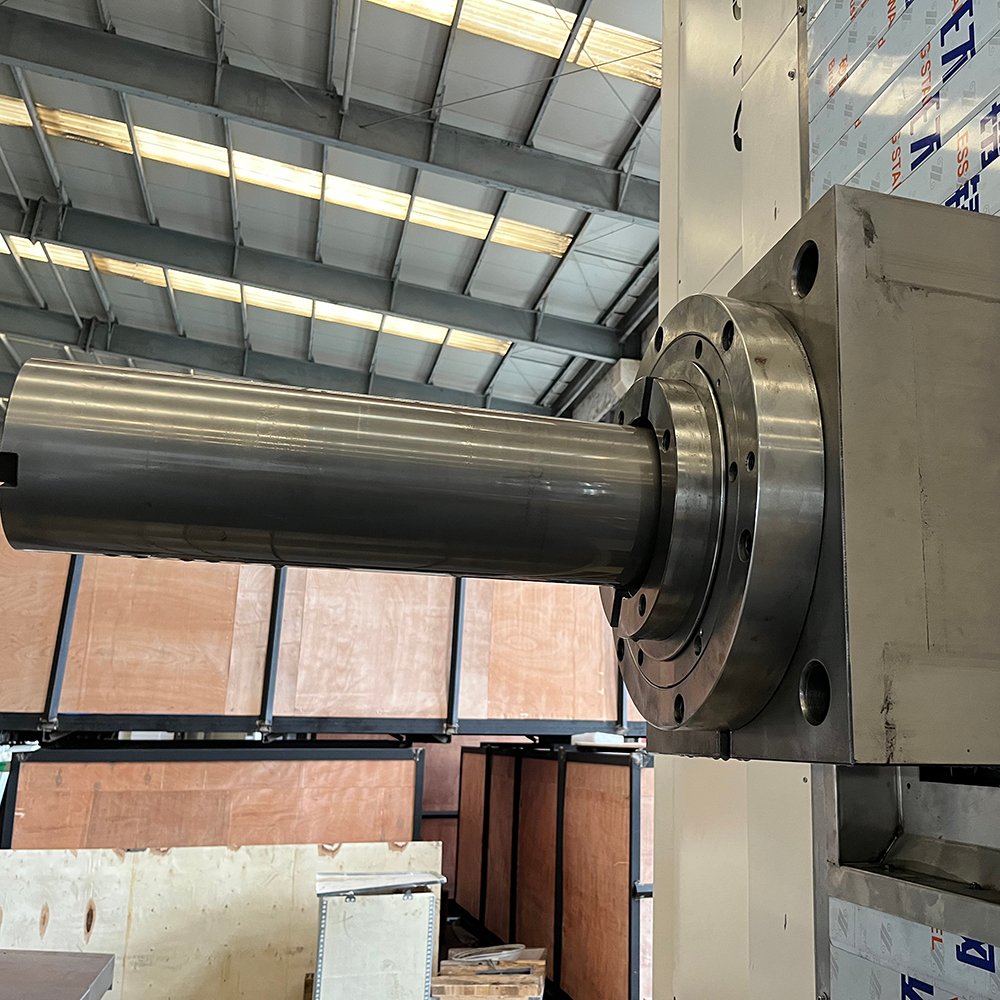

| Spindle Diameter (mm) | φ110 | φ130 | φ130 | φ160 | φ160 |
| Spindle Taper (ISO) | 50 | 50 | 50 | 50 | 50 |
| Spindle Bore (mm) | 50 | 50 | 50 | 50 | 50 |
| Spindle Rotating Speed (r/min) | 10-2000 | 2-2000 | 2-1500 | 2-1500 | 2-1000 |
| Slant Head Cross section Diameter (mm) | φ221.44 | φ221.44 | φ221.44 | φ250 | φ250 |
| Worktable Size (mm) | 1200×1400 / 1400×1600 | 1400×1600 / 1600×1800 | 1600×1800 / 1800×2000 / 2000×2500 | 1400×1600 / 1600×1800 / 1800×2000 | 1400×1600 / 1600×1800 / 1800×2000 / 2500×3000 |
| Max. Load Capacity of Worktable (kg) (Adjustable) | 6000 | 10000 | 10000 | 20000 | 40000 |
| Min. Distance Spindle Nose - Worktable (mm) | 0 | 0 | 0 | 0 | 0 |
| Main Motor Power (kW) | 17/22.5 | 22/50 | 30/41 | 30/41 | 37/51 |
| Travel of Worktable (X-axis) Adjustable (mm) | 2000 | 2600 | 3000 | 2500 | 4000 |
| Vertical Travel of Headstock (Y-axis) Adjustable (mm) | 1500 | 2000 | 2000 | 2000 | 2000 |
| Travel of Ram (Z-axis) (mm) | 600 | 800 | 700 | 1000 | 1200 |
| Travel of Ram (W-axis) (mm) | - | - | 800 | - | 1200 |
| Travel of Column (V-axis) (mm) | 1 | 1 | 1600 | 1 | 2000 |
| Travel of Rotation (U-axis) (°) | 360 | 360 | 360 | 360 | 360 |
| Travel Speed of Worktable (X) (mm/min) | 5000 | 0.5-6000 | 0.5-6000 | 0.5-6000 | 0.5-6000 |
| Travel Speed of Headstock (Y) (mm/min) | 5000 | 0.5-6000 | 0.5-6000 | 0.5-6000 | 0.5-6000 |
| Travel Speed of Spindle (Z) (mm/min) | 3000 | 0.5-4500 | 0.5-4500 | 0.5-4500 | 0.5-4500 |
| Travel Speed of Ram (W) (mm/min) | - | 0.5-4500 | 0.5-4500 | 0.5-4500 | 0.5-4500 |
| Tool Magazine (No. of tools) | 40/60 | 40/60 | 40/60 | 40/60 | 40/60 |
| Max. Weight of Tool (kg) | 40 | 40 | 40 | 40 | 40 |
| Max. Output of Tool Positions Diameter (mm) | φ125 | φ125 | φ125 | φ125 | φ125 |
| Tool Diameter (mm) | φ250 | φ250 | φ250 | φ250 | φ250 |
| Max. Tool Length (mm) | 300 | 300 | 300 | 300 | 300 |
| Tool Change Time (sec) | 15 | 15 | 15 | 15 | 15 |
| Control System (Optional) | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc |
Product Advantages
The Weish Boring Mill planer design represents the highest level of precision and is the solution for all users who have to manufacture and machine to the tightest tolerances. Complex, prismatic workpieces with dimensions up to 2,000 × 1,600 × 1,500 mm and weights of up to 6 t and more are machined with high precision.
Company Strength
Full axis shows to Clients.
Our K-series machines demonstrate complete axis movement and capabilities to clients.
Maximum performance and precision was satisfying to Clients
Clients are satisfied with the maximum performance and precision delivered by our boring mills.
Advanced hydrostatic guide system
Preloaded hydrostatic guides on X/Y axes ensure superior rigidity and vibration damping for high-precision boring.
Freight Information
This machine will be loading into 2x40 feet GP containers for international shipping.
