TK6513

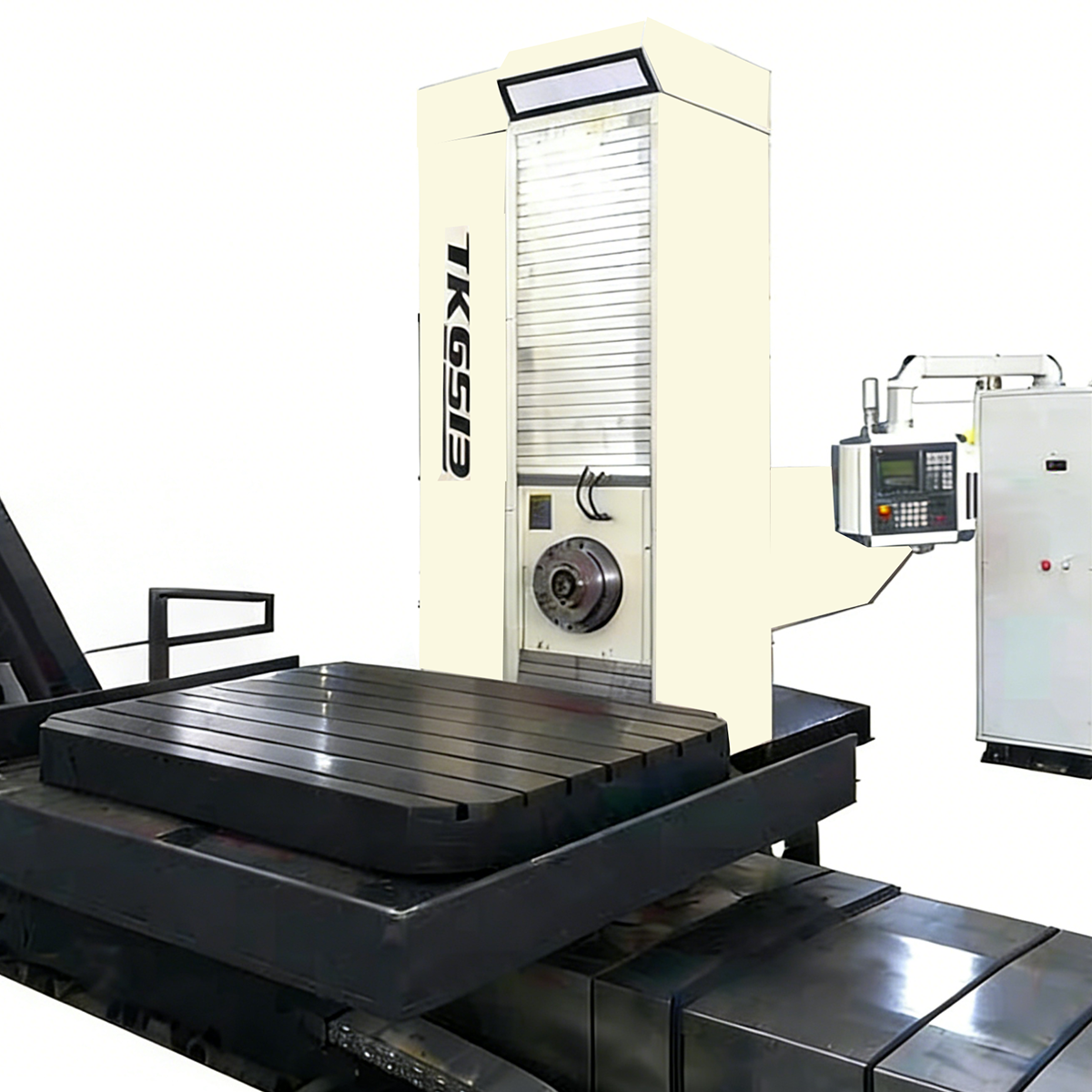

TK6511/6513/6516 series CNC planer boring and milling machine is a CNC machine tool, mainly used for processing large metal workpieces, such as parts for the shipbuilding, automobile, railway, aviation and other industries.
Product Details
The Weish boring mills adopt preloaded hydrostatic guides on the X and Y axes to make full use of the advantages of rigidity and damping of the vibrations.
Technical Specifications
| Parameter Category | TK6511 | TK6513 | TK6813 | TK6516 | TK6816 |
|---|---|---|---|---|---|
| Spindle Diameter (mm) | φ110 | φ130 | φ130 | φ160 | φ160 |
| Spindle Taper (ISO) | 50 | 50 | 50 | 50 | 50 |
| Spindle Bore (mm) | 50 | 50 | 50 | 50 | 50 |
| Spindle Rotating Speed (r/min) | 10-2000 | 2-2000 | 2-1500 | 2-1500 | 2-1000 |
| Slant Head Cross section Diameter (mm) | φ221.44 | φ221.44 | φ221.44 | φ250 | φ250 |
| Worktable Size (mm) | 1200×1400 / 1400×1600 | 1400×1600 / 1600×1800 | 1600×1800 / 1800×2000 / 2000×2500 | 1400×1600 / 1600×1800 / 1800×2000 | 1400×1600 / 1600×1800 / 1800×2000 / 2500×3000 |
| Max. Load Capacity of Worktable (kg) (Adjustable) | 6000 | 10000 | 10000 | 20000 | 40000 |
| Min. Distance Spindle Nose - Worktable (mm) | 0 | 0 | 0 | 0 | 0 |
| Main Motor Power (kW) | 17/22.5 | 22/50 | 30/41 | 30/41 | 37/51 |
| Travel of Worktable (X-axis) Adjustable (mm) | 2000 | 2600 | 3000 | 2500 | 4000 |
| Vertical Travel of Headstock (Y-axis) Adjustable (mm) | 1500 | 2000 | 2000 | 2000 | 2000 |
| Travel of Ram (Z-axis) (mm) | 600 | 800 | 700 | 1000 | 1200 |
| Travel of Ram (W-axis) (mm) | - | - | 800 | - | 1200 |
| Travel of Column (V-axis) (mm) | 1 | 1 | 1600 | 1 | 2000 |
| Travel of Rotation (U-axis) (°) | 360 | 360 | 360 | 360 | 360 |
| Travel Speed of Worktable (X) (mm/min) | 5000 | 0.5-6000 | 0.5-6000 | 0.5-6000 | 0.5-6000 |
| Travel Speed of Headstock (Y) (mm/min) | 5000 | 0.5-6000 | 0.5-6000 | 0.5-6000 | 0.5-6000 |
| Travel Speed of Spindle (Z) (mm/min) | 3000 | 0.5-4500 | 0.5-4500 | 0.5-4500 | 0.5-4500 |
| Travel Speed of Ram (W) (mm/min) | - | 0.5-4500 | 0.5-4500 | 0.5-4500 | 0.5-4500 |
| Tool Magazine (No. of tools) | 40/60 | 40/60 | 40/60 | 40/60 | 40/60 |
| Max. Weight of Tool (kg) | 40 | 40 | 40 | 40 | 40 |
| Max. Output of Tool Positions Diameter (mm) | φ125 | φ125 | φ125 | φ125 | φ125 |
| Tool Diameter (mm) | φ250 | φ250 | φ250 | φ250 | φ250 |
| Max. Tool Length (mm) | 300 | 300 | 300 | 300 | 300 |
| Tool Change Time (sec) | 15 | 15 | 15 | 15 | 15 |
| Control System (Optional) | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc | Fagor/Siemens/Fanuc |
Product Advantages
The focal point of the Weish machine is the ram, guided inside the headstock by hydrostatic pads, and equipped with a boring bar exclusively with mechanical transmission. Both the ram as well as the boring bar have a feedback system to compensate for any elongations caused by temperature variations.
Company Strength
Full axis shows to Clients.
Our K-series machines demonstrate complete axis movement and capabilities to clients.
Maximum performance and precision was satisfying to Clients
Clients are satisfied with the maximum performance and precision delivered by our boring mills.
Advanced hydrostatic guide system
Preloaded hydrostatic guides on X/Y axes ensure superior rigidity and vibration damping for high-precision boring.
Freight Information
This machine will be loading into 2x40 feet GP containers for international shipping.
Weish CNC is your expert partner for innovative, customer-specific machine solutions. We design customized machines according to the latest state of the art and the highest quality standards for all industries.
