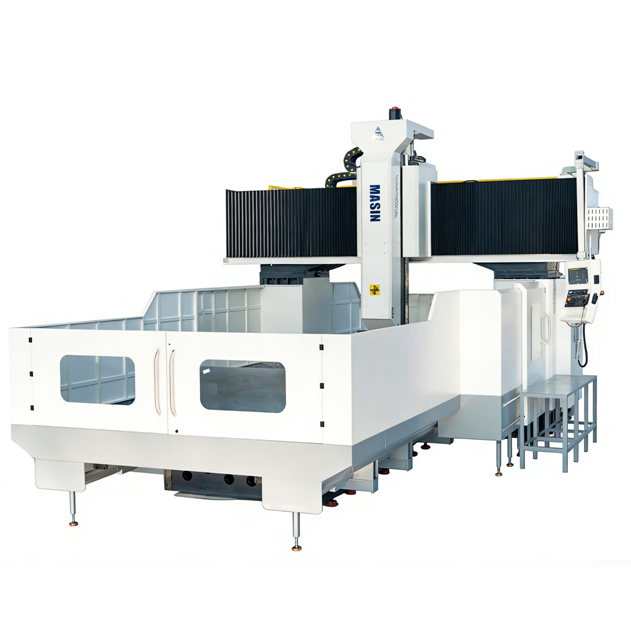

DH2035M
Gantry Machining Center can perform include milling, facing, boring, drilling, tapping, reaming, etc. This does not make a gantry machine different from a regular milling machine. However, because of the bed size, gantry mills can machine larger, longer and heavier workpieces.
Product Details

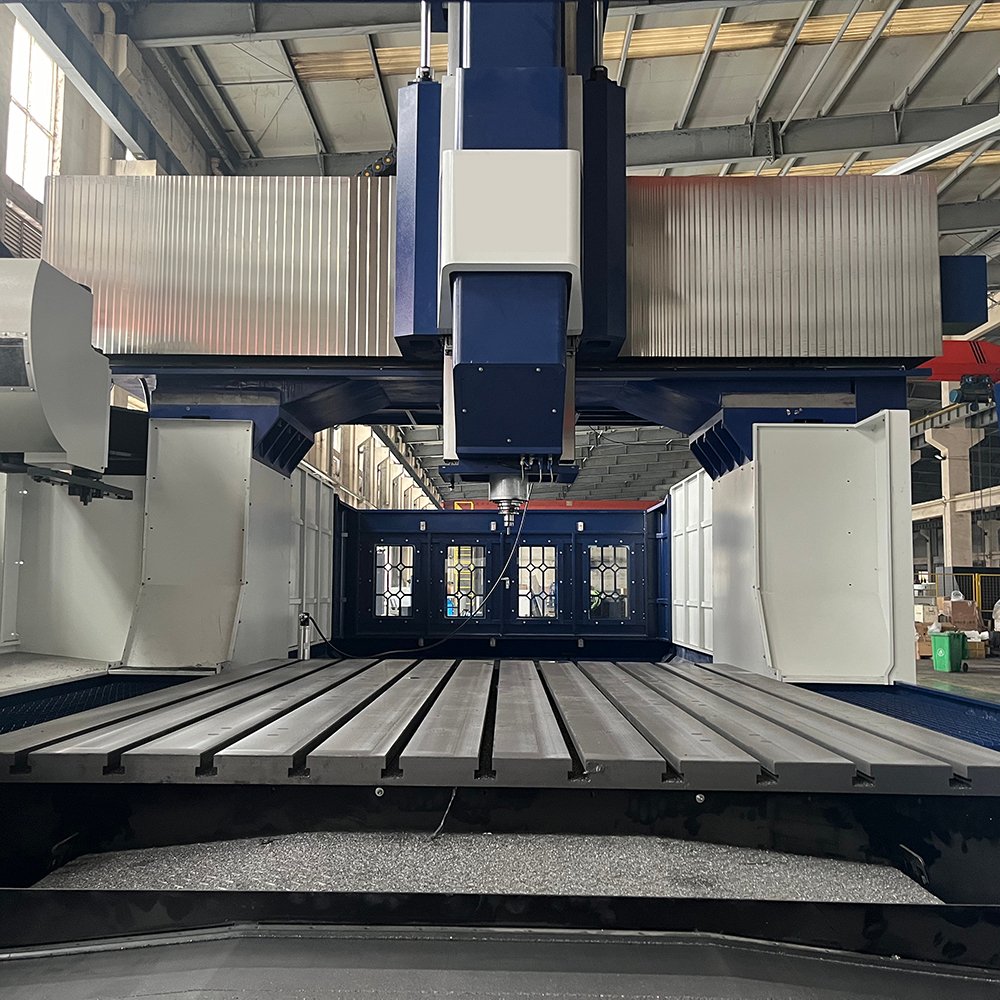

- A large table that holds the workpiece and can move along the X and Y axes.
- A spindle that rotates the cutting tool and can move along the Z axis.
- A tool changer that stores and changes the cutting tools automatically.
Technical Specifications
| Parameter Category | DH1530 | DH2035 | DH2035M | DH2740 | DH2740M |
|---|---|---|---|---|---|
| Chuck size | - | - | - | - | - |
| Max. Turning Diameter | - | - | - | - | - |
| Max. Turning Length | - | - | - | - | - |
| Table to spindle nose (mm) | 1000 | 2200 | 1000 | 950 | 950 |
| X-Axis Rapid Traverse (m/min) [spec] | - | - | - | - | - |
| Z-Axis Rapid Traverse (m/min) [spec] | - | - | - | - | - |
| X-Axis Travel Distance (mm) | 3000 | 3500 | 3500 | 4000 | 4000 |
| Y-Axis Travel Distance (mm) | 1550 | 2050 | 2050 | 2700 | 2700 |
| Z-Axis Travel Distance (mm) | 800 | 800 | 800 | 800 | 800 |
| X-Axis Rapid Traverse (feed) (m/min) | 16 | 16 | 16 | 16 | 12 |
| Y-Axis Rapid Traverse (m/min) | 16 | 16 | 16 | 24 | 16 |
| Z-Axis Rapid Traverse (m/min) | 16 | 16 | 16 | 24 | 16 |
| Max. Spindle Speed (r/min) | 30/25 | 8000 | 30/25 | 30/25 | 12000 |
| Max. Spindle Power (kW) | 30 (7/24 TAPER) | 30 | 30 (7/24 TAPER) | 30 (7/24 TAPER) | 30/25 |
| Max. Spindle Torque (N·m) | 12000 | 600 | 12000 | 10000 | 420 |
| Tool Taper | ISO #50 | - | ISO #50 | ISO #50 | ISO #50 |
| Table Length (mm) | 3000 | 3500 | 3500 | 4000 | 4000 |
| Table Width (mm) | 1350 | 1850 | 1850 | 2500 | 2500 |
| Pallet Size | - | - | - | - | - |
| Rotary Table Diameter | - | - | - | - | - |
| Maximum Workpiece weight (kg) | 8000 | 10000 | 10000 | 10000 | 15000 |
Product Advantages

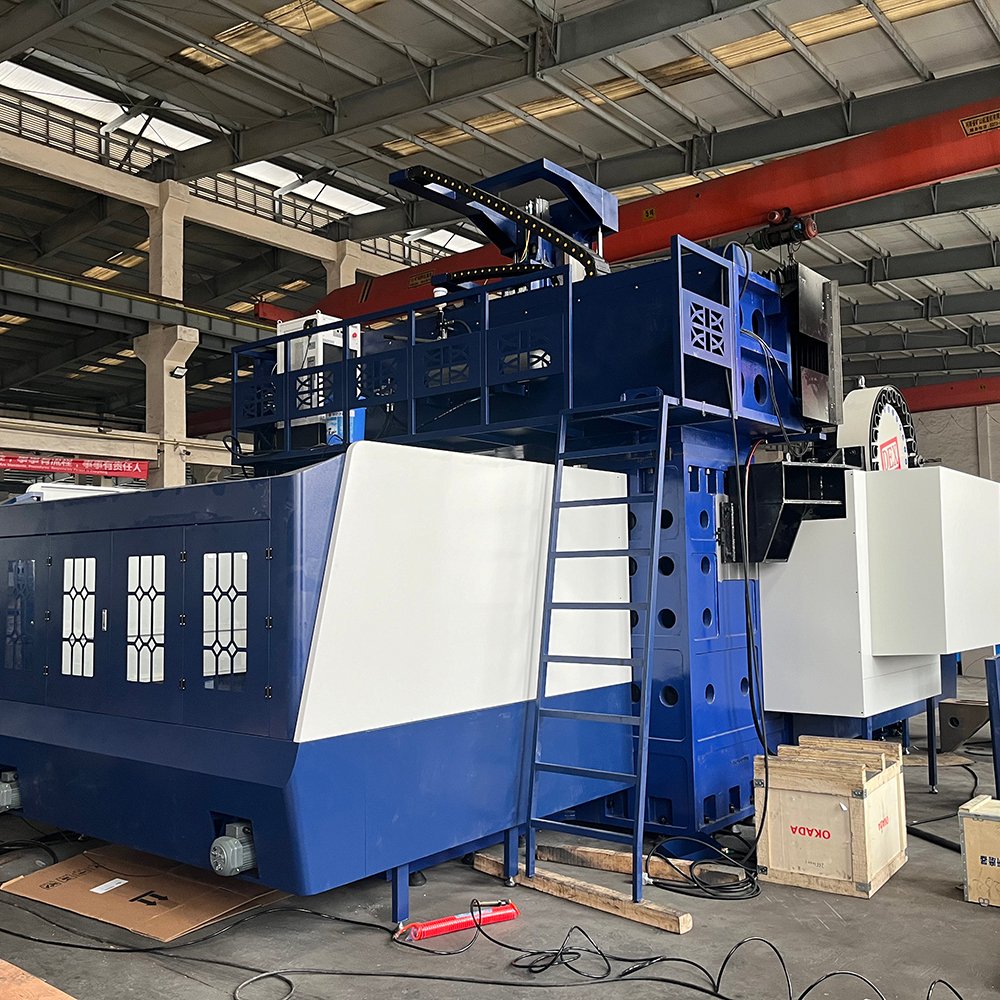

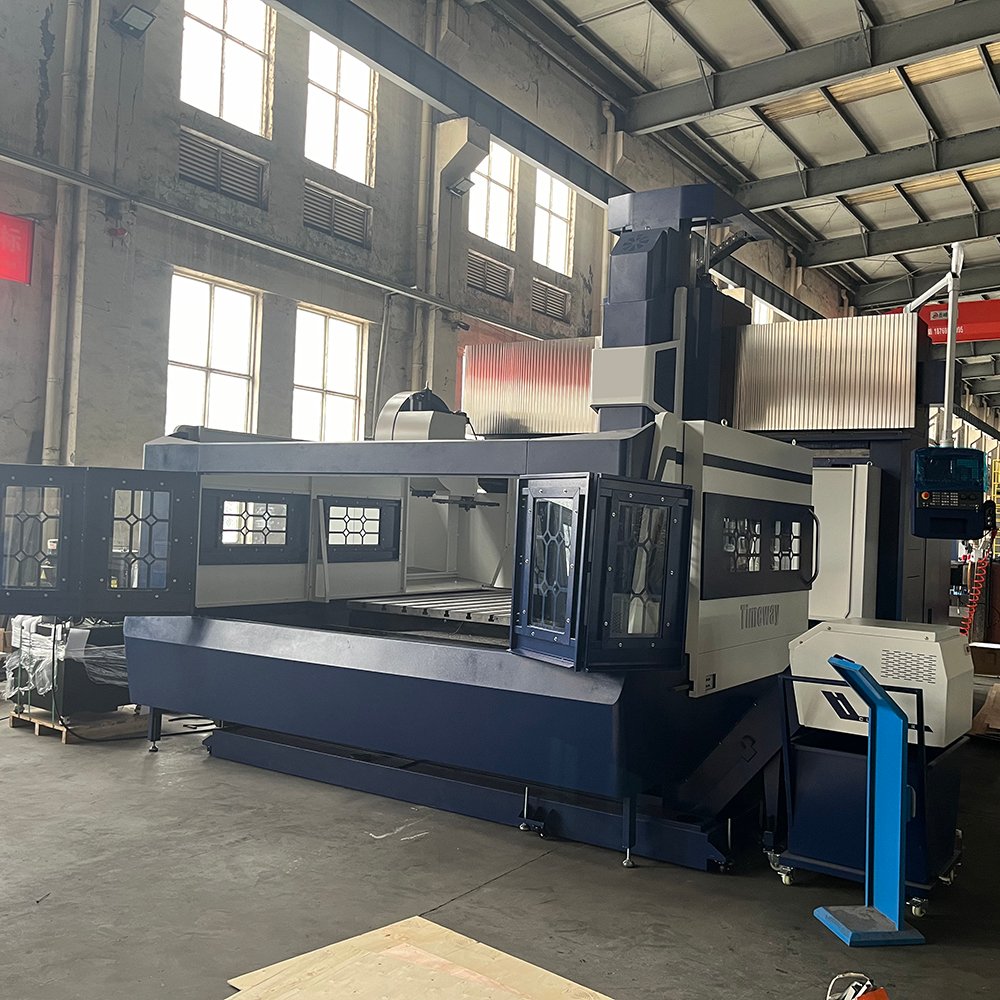

DH series gantry mill is a distinctive machine tool with its double-column structure. The gantry refers to the CNC router that hangs over the worktable to perform machining processes. It is the rapid movement of the gantry that makes this machine extra efficient.
Company Strength
High-rigid structure can be doing the job at stability.
Our DH series features robust construction for stable and reliable machining operations.
Types of ATC for option
Multiple automatic tool changer options available to suit various production needs.
Freight Information
This machine will be loading into 2x40 feet GP containers for international shipping.
They often machine workpieces that are meters in length and width and tons in weight. This feature is particularly beneficial to the aerospace, automotive and military/defense industries, which require the production of large dies/molds.
