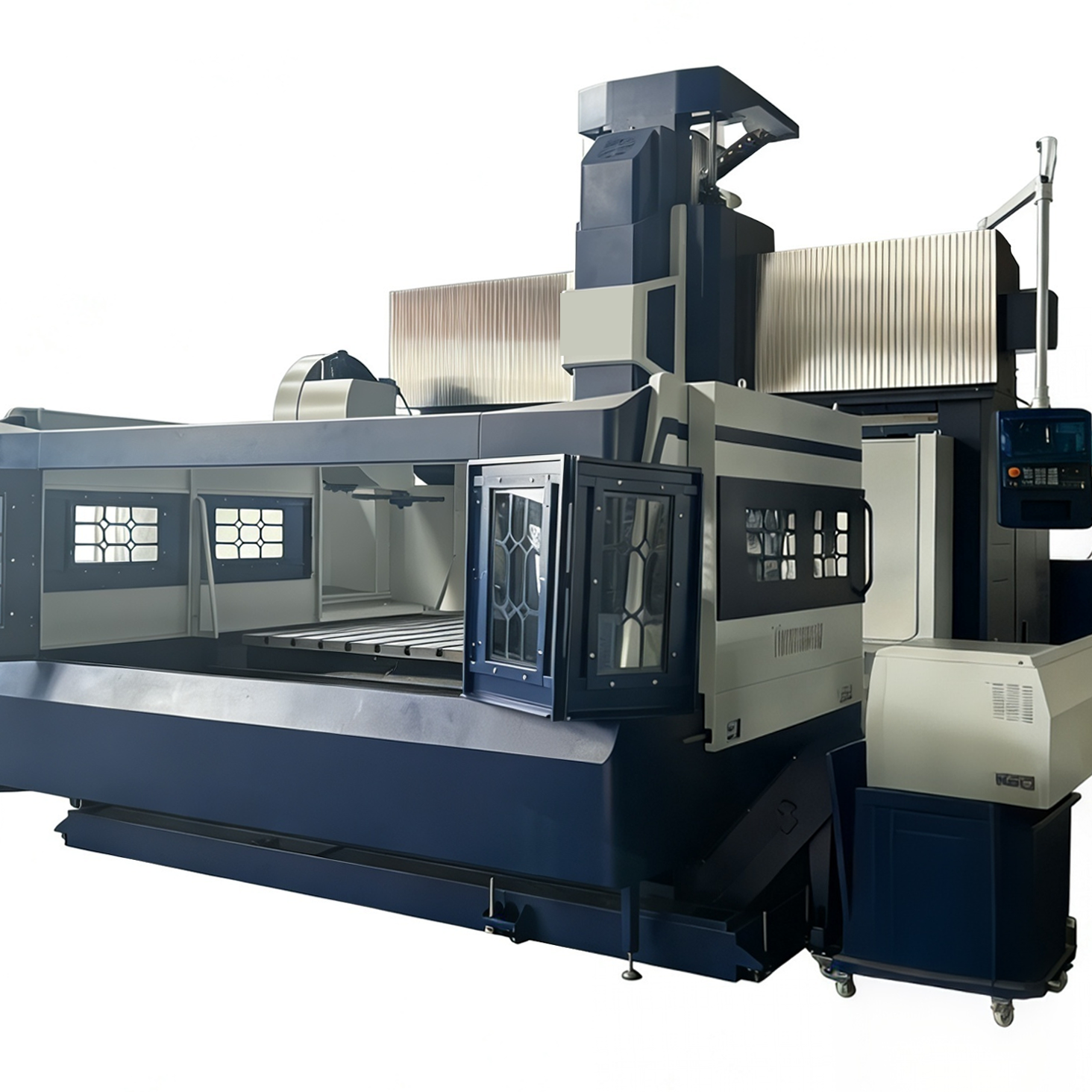

DH1530
RAM-type spindle for heavy-duty cutting
And high-quality mold machining
Product Details
Manufacturers that machine large, oversized dies and mold tools (i.e. press tools, injection told tools etc.), for the automotive sector need high performance and high-accuracy machine tools. As a result many have invested in our BM series of machines.
Technical Specifications
| Parameter Category | DH1530 | DH2035 | DH2035M | DH2740 | DH2740M |
|---|---|---|---|---|---|
| Chuck size | - | - | - | - | - |
| Max. Turning Diameter | - | - | - | - | - |
| Max. Turning Length | - | - | - | - | - |
| Table to spindle nose (mm) | 1000 | 2200 | 1000 | 950 | 950 |
| X-Axis Rapid Traverse (m/min) [spec] | - | - | - | - | - |
| Z-Axis Rapid Traverse (m/min) [spec] | - | - | - | - | - |
| X-Axis Travel Distance (mm) | 3000 | 3500 | 3500 | 4000 | 4000 |
| Y-Axis Travel Distance (mm) | 1550 | 2050 | 2050 | 2700 | 2700 |
| Z-Axis Travel Distance (mm) | 800 | 800 | 800 | 800 | 800 |
| X-Axis Rapid Traverse (feed) (m/min) | 16 | 16 | 16 | 16 | 12 |
| Y-Axis Rapid Traverse (m/min) | 16 | 16 | 16 | 24 | 16 |
| Z-Axis Rapid Traverse (m/min) | 16 | 16 | 16 | 24 | 16 |
| Max. Spindle Speed (r/min) | 30/25 | 8000 | 30/25 | 30/25 | 12000 |
| Max. Spindle Power (kW) | 30 | 30 | 30 | 30 | 30/25 |
| Max. Spindle Torque (N·m) | 12000 | 600 | 12000 | 10000 | 420 |
| Tool Taper | ISO #50 | - | ISO #50 | ISO #50 | ISO #50 |
| Table Length (mm) | 3000 | 3500 | 3500 | 4000 | 4000 |
| Table Width (mm) | 1350 | 1850 | 1850 | 2500 | 2500 |
| Pallet Size | - | - | - | - | - |
| Rotary Table Diameter | - | - | - | - | - |
| Maximum Workpiece weight (kg) | 8000 | 10000 | 10000 | 10000 | 15000 |
Product Advantages
- All axes provided with a linear scale as standard
- Ball screw bearings and nut cooling system.
- Long-nose type ideal for deep pocket mold machining
- Equipped with a dual contact spindle as standard for high rigidity and minimum vibration.
Company Strength
High-rigid structure can be doing the job at stability.
Our DH series features robust construction for stable and reliable machining operations.
Types of ATC for option
Multiple automatic tool changer options available to suit various production needs.
Freight Information
This machine will be loading into 2x40 feet GP containers for international shipping.
Based on the development and manufacturing of machine tools customized to the requirements of specific demand industries, we implement machining process optimization, improve quality and ensure work stability to satisfy customers, improve the competitiveness of demand industries, and maximize the efficiency of production. We are committed to providing customized manufacturing technology and optimized system engineering solutions to our customers by demand industry.
