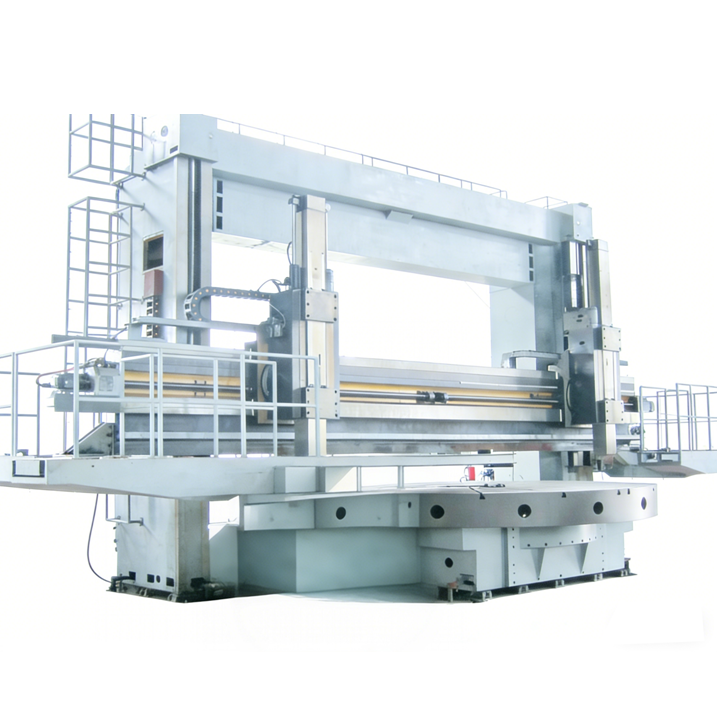

CK5280
Weish meets all specific client requirements at turning diameters from 1,400 to 12,000 mm and turning heights of up to 10,000 mm.
Product Details
A weish machine stands for the highest machining quality and durability in turning, always with the option of complete machining through the integration of drilling, milling, cutting and tapping.
Technical Specifications – CXK5280 / CXK52100
| Specification | Unit | CXK5280 | CXK52100 |
|---|---|---|---|
| Maximum machining diameter | mm | 8000 | 10000 |
| Maximum working height | mm | 4000 | 4500 |
| Max loading | t | 125 | 180 |
| Diameter of worktable | mm | 6300 | 7500 |
| Table turning speed range (stepless) | r/min | Cutting 0.20～20 | |
| Table milling speed range (stepless) | r/min | Milling 0.001～1 | |
| Table maximum torque | kN.m | 460 | |
| Tool post horizontal travel | mm | -50 ~ 4400 | -50 ~ 5000 |
| Ram vertical travel | mm | 2000 | |
| Tool holder feed range | mm/min | 0.1 ~ 1000 | |
| Tool holder rapid movement speed | mm/min | 4000 | |
| Ram section | mm | 320 × 320 | |
| Tool holder section | mm | 70 × 70 | |
| Max cutting force | kN | 80 | |
| Motor of milling spindle (AC) | kW | 31 | |
| Milling spindle speed range | r/min | 20 ~ 2000 | |
| Milling taper | - | ISO 50 | |
| Max beam travel | mm | 3500 | 4200 |
| Lifting speed of beam | mm/min | 410 | |
| Lifting motor of beam | kW | 45 | |
| Main motor (DC) | kW | 110 | 125 |
| Total weight | t | 230 | 300 |
Product Advantages
CXK52 series implement the latest national precision standard and safety standard, equipped with advanced and reliable electro-mechanical components at home and abroad, whose excellent structural performance and strong rigidity can meet the requirement of strong Cutting. Milling, drilling, tapping. The table can bear large tonnage load with good stability, high efficiency, safety and reliability.
Company Strength
Thermosymmetrical Frame Design
The inherently rigid machine frame features a thermosymmetrical design. The large-dimensioned axial thrust bearing supports the machine table and workpiece weight. Radial guidance is assured by means of a preloaded angular contact ball bearing. The table drive of either a three or four shaft arrangement enables the highest efficiency and performance to be achieved.
Symmetrical Portal Structure
The portal design consists of two columns connected by a large section crossbeam. The symmetrical design of the portal provides the cross rail guidance via two large box section guideways.
Optimised Cross Rail
The cross rail is a ribbed design with optimised cross section. Cast iron construction, hydrostatic guideways, guiding width 700 – 1,500 mm, hydraulic clamping of the cross-beam in machining position.
Freight Information
This machine will be loading into 6x40 feet OT containers for international shipping.
Weish offers high flexibility in production thanks to the large selection of attachment units, various table and magazine designs as well as quality assurance through workpiece and tool measurement. This flexibility allows customised configuration of machines according to customer and application-specific requirements.
