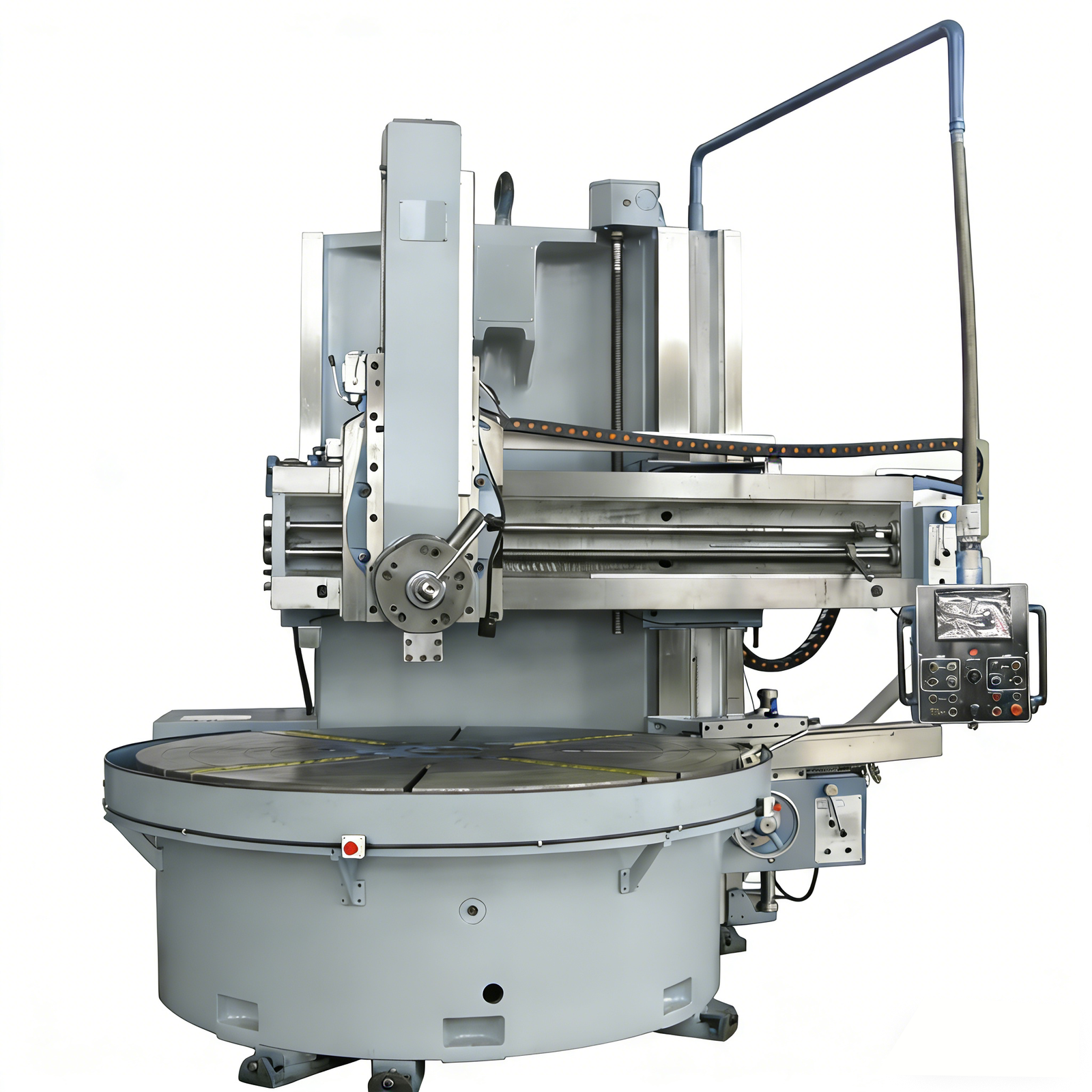

CK5116
Weish vertical lathe machines are designed for a wide range of industrial applications including cylindrical turning, boring, tapering, surfacing, and grooving—from roughing to precision finishing.
Product Details
Heavy workpieces with reliability and high performance for turning, boring, and turn-mill operations. Built on a solid casting, they ensure stability, rigidity, and easy handling across automotive, power, shipping, railways, and heavy industries.
Technical Specifications – CK5116
| Specification | Value |
|---|---|
| Model | CK5116 |
| Max. turning diameter (mm) | 1600 |
| Max. height of workpiece (mm) | 1200 |
| Max. weight of workpiece (t) | 5 |
| Table diameter (mm) | 1400 |
| Speed range of table (r/min) | 5-160 |
| Speed step of table | 16 |
| Travel of railhead horizontal (mm) | 915 |
| Travel of railhead vertical (mm) | 800 |
| Travel of slidehead horizontal (mm) | 630 |
| Travel of slidehead vertical (mm) | 980 |
| Travel of cross rail (mm) | 850 |
| Max. tool holder size (mm) | 30×40 |
| Swivel of rail head | ±30° |
| Range of feeds rates (mm/min) | 0.8-86 (12 steps) |
| Rapid traverse speed of vertical or side tool head (mm/min) | 1800 |
| System | FANUC / GSK / SIEMENS |
| Power of main motor (kW) | 30 |
| Overall dimension (mm) | 2830×22670×3010 |
| Machine weight (t) | 12.5 |
Product Advantages
CNC vertical turning lathe CK51 series are semi-closed loop full CNC controlled lathes, whose available selection systems are SIEMENS, FANUC OITF and GSK. CK51 series are suitable for machining all kinds of cast iron, steel and alloy, non-ferrous metal, non-metal materials, etc. It can turn internal and external cylinders, internal and external cones, flat surfaces, grooves, threads and various rotating curved bodies. The machine has good system rigidity, high precision, high efficiency, high stability and reliability, whose spindle is equipped with encoders that provide functions of constant linear speed cutting and thread turning.
Company Strength
High-Precision Spindle
Robust spindle design ensures stable and accurate machining for heavy-duty turning applications.
Heavy-Duty Table
Large worktable with high load capacity, suitable for massive workpieces up to 5 tons.
Multi-Axis Control
Advanced CNC system with multiple axes for complex turning and boring requirements.
High Torque & Damping
Maximum damping and rigidity combined with high torque for vibration-free cutting.
Modular Design
Flexible modular construction allows customization for various machining processes.
Thermal Stability
Ribbed castings and balanced design ensure thermal stability and minimal deformation.
User-Friendly Operation
Intuitive controls and easy maintenance for long-term trouble-free operation.
Freight Information
This machine will be loading into 4x40 GP containers for international shipping.
Weish CNC is your expert partner for innovative, customer-specific machine solutions. We design customized machines according to the latest state of the art and the highest quality standards for all industries. Welcome !!!
