BTG3020

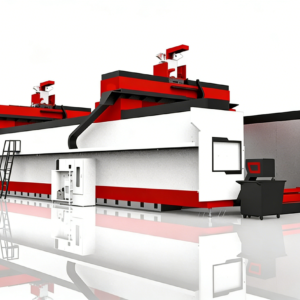

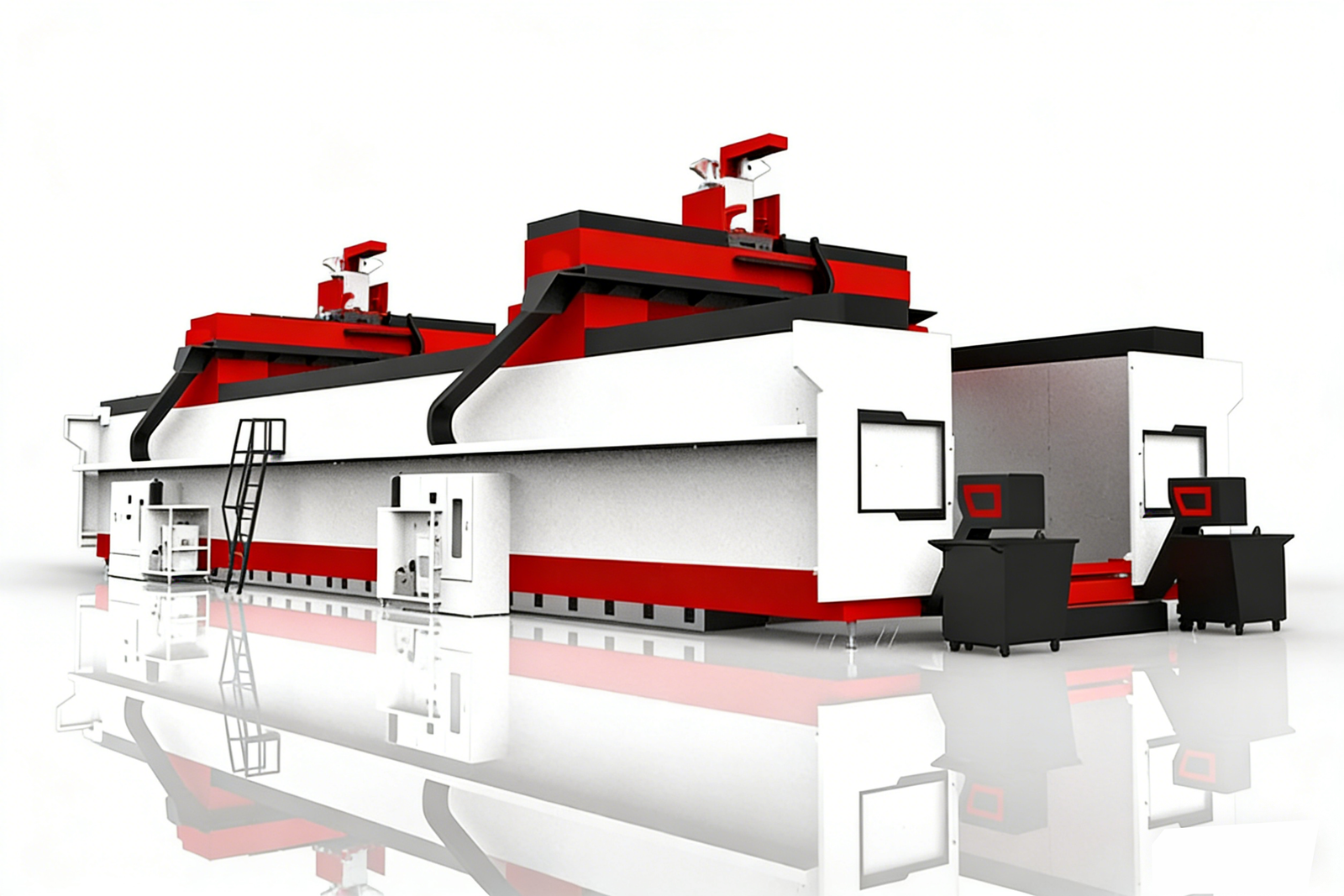

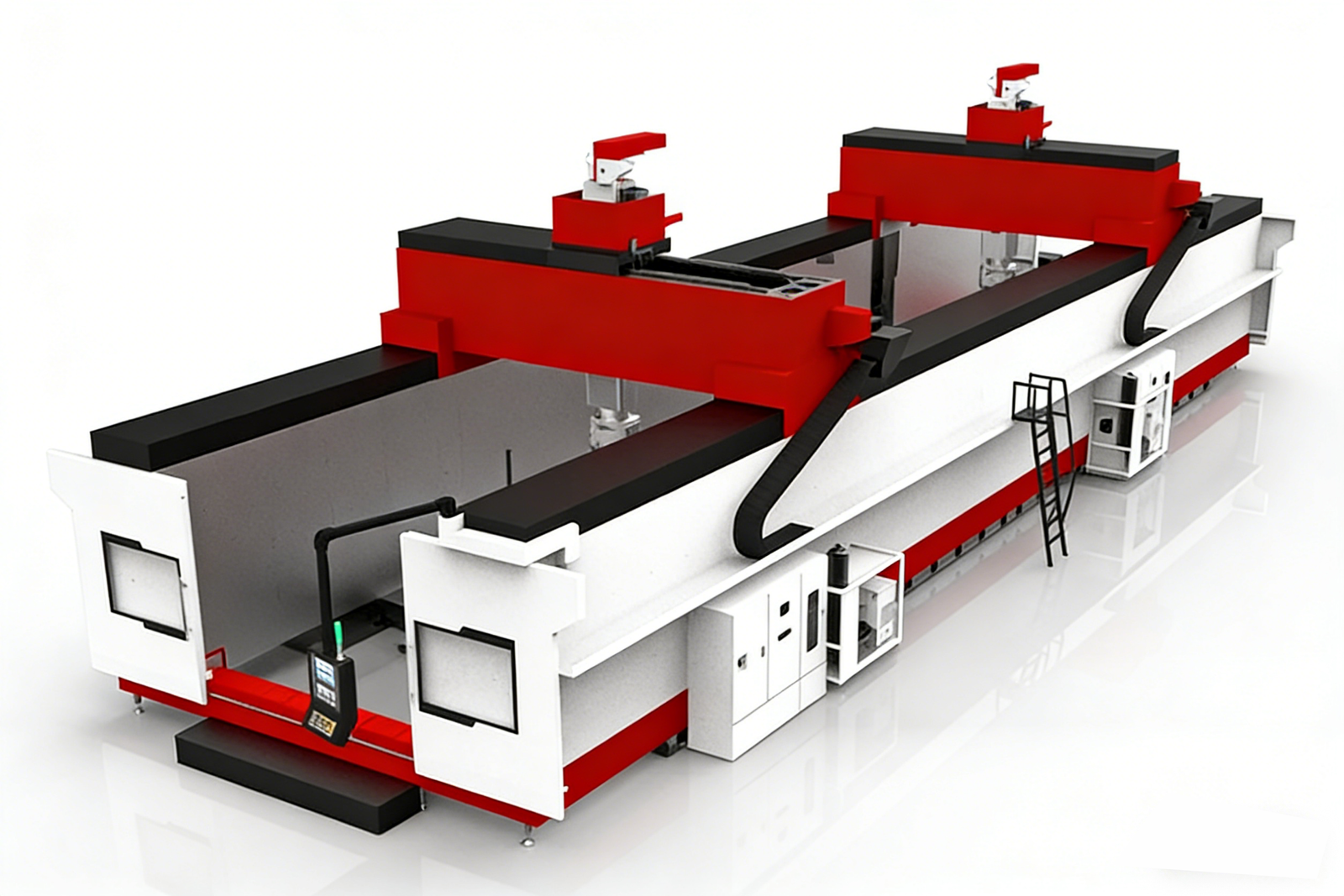

The Bridge type Series CNC Gantry Machining Centers are engineered to handle workpieces of varying weights without compromising performance. As long as the workpiece fits within the machine’s dimensions, it can be precisely machined.
Product Details
Weish CNC offers several machine configurations perfectly adapted to oil and gas sector's applications.
- Stabilizer
- Roller reamer
- Fluid end
Technical Specifications
| Parameter Category | BTG1810 | BTG2216 | BTG3016 | BTG4016 | BTG3020 |
|---|---|---|---|---|---|
| Travel (X/Y/Z/mm) | 2000*1050*550 | 2500*1600*800 | 3200*1600*800 | 4200*1600*800 | 3200*2000*1000 |
| Table size (mm) | 1900*1000 | 2200*1600 | 3000*1600 | 4000*1600 | 3000*2000 |
| Max feeding Height | 730 | 950 | 950 | 950 | 1150 |
| Spindle taper | BT50 | BT50 | BT50 | BT50 | BT50 |
| Power | 12/8KW 115/72NM | SIEMENS:16/20KW FANUC:15/18.5KW | SIEMENS:16/20KW FANUC:15/18.5KW | SIEMENS:16/20KW FANUC:15/18.5KW | SIEMENS:16/20KW FANUC:15/18.5KW |
| Spindle RPM | 8000rpm(Belt) | 8000rpm(Belt) | 8000rpm(Belt) | 8000rpm(Belt) | 8000rpm(Belt) |
| Rapid feed rate (X/Y/Z) | 20/20/20M/min | 20/20/20M/min | 20/20/20M/min | 20/20/20M/min | 20/20/20M/min |
| Max feeding width | 1300 | 2000 | 2000 | 2000 | 2400 |
| Machine weight (Tom) | 15.5 | 25 | 30 | 30 | 38 |
| Machine size | 4800*3150*2800 | 5200*4000*3400 | 6000*4000*3400 | 6000*4000*3400 | 6000*4000*3600 |
| Control system | SIEMENS 828D / FANUC 0iMF / SIEMENS ONE (5 xis) | SIEMENS 828D / FANUC 0iMF / SIEMENS ONE (5 xis) | SIEMENS 828D / FANUC 0iMF / SIEMENS ONE (5 xis) | SIEMENS 828D / FANUC 0iMF / SIEMENS ONE (5 xis) | SIEMENS 828D / FANUC 0iMF / SIEMENS ONE (5 xis) |
Product Advantages
The machine's moving components are engineered to minimize impact changes, ensuring long-term precision even after extended use.
Company Strength
High-precision and high-speed mold machining performance
Our BTG series delivers exceptional precision and speed for complex mold manufacturing applications.
Complete Five-Face Machining Capability
Our machine is capable of achieving five-face machining for complex workpieces in a single setup.
Freight Information
This machine will be loading into 6×40 feet OT (open top) containers for international shipping.
Our preventive maintenance service includes different rebuilding / overhauling and retrofitting options so that technological or economic obsolescence can be put off for as long as possible.
